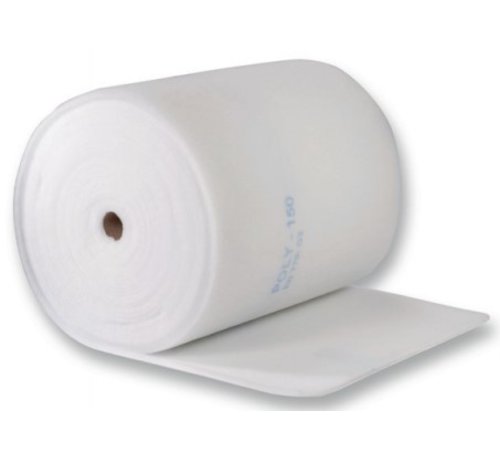

Filter media G3 - ISO Coarse 50% - 1000 x 2000 x20 mm. -

Filter media G3 - ISO Coarse 50%- 20 mm - Serie 290

Roll size: 1000 x 2000 mm. - nominal thickness: 20mm.

Do you need customization? We are happy to provide a tailor-made offer without obligation.

Send your request to: [email protected]

Air filter media designed for pre or coarse filtration of the air intake in general ventilation and air handling systems installed in public buildings, offices, factories and all kinds of equipment.
Provides balanced dust collection in situations where a high air volume or polluted environment is a given.
The 290 series combines high dust pick-up with a relatively low pressure drop and is therefore extremely cost effective with a long filter life.

The filter media are made from selected high quality, non-breakable fibers in a progressive density multi-layer technique to ensure high depth loading with optimum performance at the lowest pressure drop, while achieving gravimetric arrest and efficiency levels in accordance with EN 779 standard assessments .
The 290 series is partially thermally bonded and reinforced to ensure high dust pick-up. Clean air sides are smoothed and printed for easy identification to ensure proper installation.

Technical data:

TECHNICAL DATA

Nominal airflow :    5400 m3/h/m2
Air velocity             :    1.5 m/s
Initial pressure drop           :    35 Pa
Initial pressure drop           :    250 Pa
Average arrest :    62%
Dust holding capacity:  380 g/m2 (250Pa)
Regenerable/washable: yes

The 290series complies with the European ISO16890 standard and European fire classification standards – NFF16-101 F1 classified, NF P 92-503 M1 classified, EN45545, DIN 53438-F1 and are self-extinguishing

For questions, suggestions or special filter requests, call 0031 513-648364 or send an email to [email protected]
