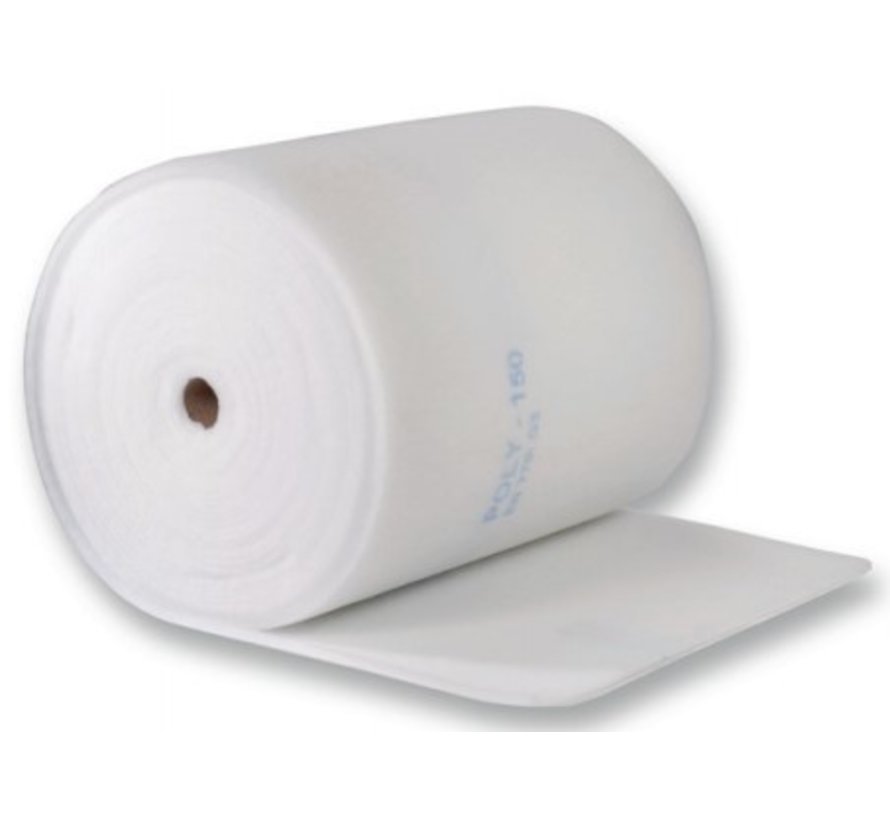

Filter media G4- ISO Coarse 60% - 1 x 20 metres x 20 mm

Filter media G4 - ISO Coarse 60% - 20 mm - serie 300

Roll size: 1 x 20 metres - nominal thickness: 20mm.

Do you need customization? We are happy to provide a tailor-made offer without obligation.

Send your request to: [email protected]

This 300 series is designed for coarse filtration of the air
inlet to general ventilation and air handling systems installed in public buildings, offices, factories and equipment of all equipment types. The products are suitable for high air volume applications that are heavily contaminated. This 300 - media combines a high dust holding capacity with a low pressure drop and is therefore extremely cost effective with a long service life.
The filter media is made of selected high quality, non-breakable fibers in progressive density multilayering technique to ensure high depth loading with optimum lowest pressure drop performance, to achieve gravimetric
arrest in accordance with EN 779:2012 standard classifications.
The 300 series is thermally bonded to prevent fiber release.

TECHNICAL DATA

Nominal airflow :    5400 m3/h/m2
Air velocity             :    1.5 m/s
Initial pressure drop           :    42 Pa
Initial pressure drop           :    250 Pa
Average arrest :    91 %
Dust holding capacity:   460 g/m2 (250Pa)
Regenerable/washable: yes

The 300 series complies with European ISO16890 standard and European fire classification standards - NFF16-101 F1 classified, NF P 92-503 M1 classified, EN45545, DIN 53438-F1 and are self-extinguishing

For questions, suggestions or special filter requests, call 0031 513-648364 or send an e-mail to [email protected]
