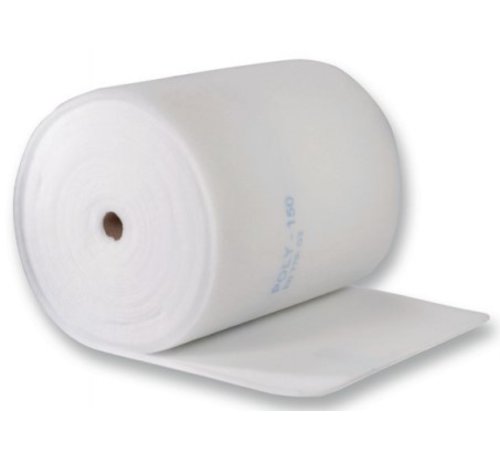

Filter media M5- ePM10 - 20 mm - in various dimensions
Filter media M5- ePM10 - 20 mm - serie C3-300
Roll size: 1000 x 1000 mm. - nominal thickness: 20mm.
Roll size: 1000 x 2000 mm. - nominal thickness: 20mm.
Roll size: 1 x 20 metres, - nominal thickness: 20mm.
Do you need customization? We are happy to provide a tailor-made offer without obligation.
Send your request to: [email protected]
Air filter media designed for fine filtration of the air intake in general ventilation and air handling systems where a higher degree of cleanliness is required. Highly effective when used as a pre-filter in a multi-stage filter bank, as well as as a diffusion ceiling filter in industrial spray booths.
is thermally bonded, reinforced and manufactured with a progressive multi-layer technique to ensure a high dust holding capacity with the lowest pressure drop and is therefore extremely cost effective with a long filter life. The clean air side is smoothed over and printed for easy identification to ensure proper installation.
- Avg. arrestance (acc.EN 779) 97%
- Initial efficiency (dust spot) 22%
- Average efficiency (dust spot) 51%
- Air velocity 0.25 m/s
- Rated air flow (m³/h/m² 900
- Initial pressure drop 15 Pa
- Final pressure drop 450 Pa
- Dust holding at tested final 330 g/m²
- Filtrair migration class R3
- Class according to EN 779 F5
- Temp. resistance, constant up to 100°C
- Temp. short peaks up to 120°C
- Nominal thickness 20 mm
- Relative humidity up to 100%
- Regenerable/washable no
